Outside pics are available over a live extensive camera system with alarm and hidden DVR
Two of the radios are connected to the N4ZKF packet BBS 24/7 using DRSI cards. ADI AR-147 (145.05 MHz.) and a Yaesu FT-840. (14.098 MHz.)
One computer running a BPQ32 port for DXZKF DX Cluster (AR node
connected with AX/IP port to the RF system). The other cluster ports
are telnet. AR DX cluster node at
dxc.n4zkf.com & CC DX cluster node at
n4zkf.com port 7373
The IC-7800 & Acom 2000A amp, are a ton of
fun along with the Icom 970H with 1.2 gig for FM, SSB and Satellite. Motorola
GTX for 900Mhz.

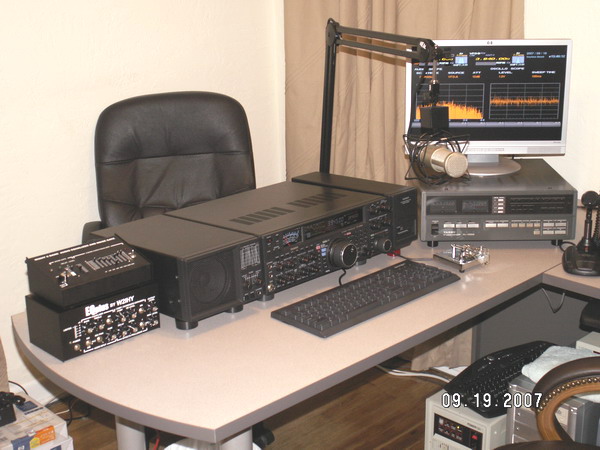

The IC-7800 is hooked to a Heil PR 40
mic using W2IHY EQ Plus and W2IHY 8 band EQ boxes.

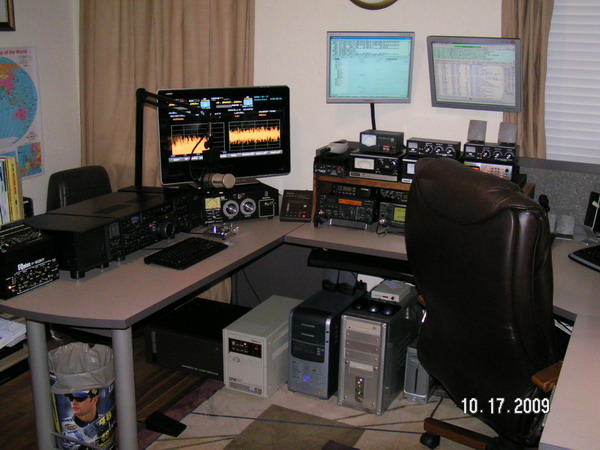

The two 17" Flat panels are running 4
computers using KVM switches to save space on the desk. The big monitor is for
the 7800 & BBS with a KVM also.
The other two monitors are for personal computer and Web/Email/FTP server. All
keyboards and mice are cordless. They all
actually work without having issues with each other. 5 cordless mice and 4
cordless keyboards!
Antennas on tower one are Directive systems
25 El. 440, 12 El. 2 Meter, & Cushcraft A3S,
40/80 Meter dipole and 2 WIFI panels to cover the property well.. Other
antennas not shown.
Tower two are Diamond F23A, Stacked
11 Element Cushcraft for 2 FM, 6 Meter 5 Element homebrew,
900 Mhz omni side mounted., 80 Meter wire across my property and a NICE
neighbor not shown.
